This tutorial will show you how to jailbreak your iPhone 3GS using PwnageTool for Mac.

Step One

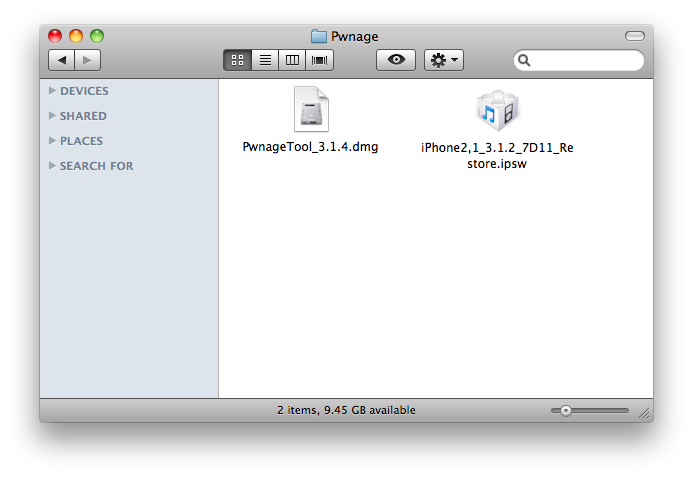

Make a folder called “Pwnage” on the desktop. In it, you will need a couple of things. PwnageTool 3.1.4, found here or here

You will also need the 3.1.2 iPhone firmware.

When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!

Step Two

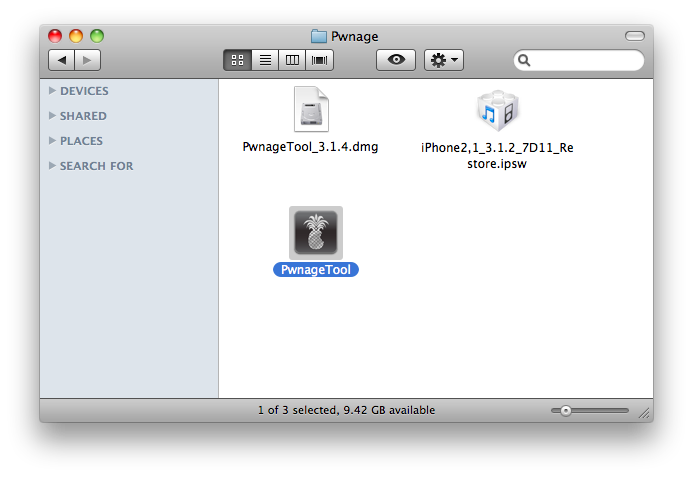

Double click to mount PwnageTool 3.1.4 then drag the PwnageTool icon into the Pwnage folder.

Then from the Pwnage folder double click to launch the PwnageTool application.

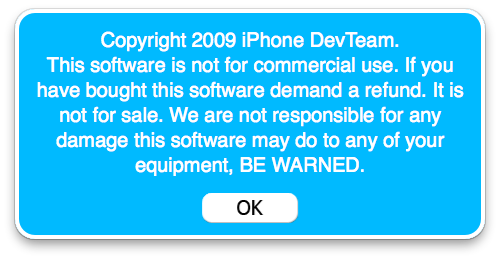

Click Ok if presented with a warning.

Step Three

Click to select Expert Mode from the top menu bar

Step Four

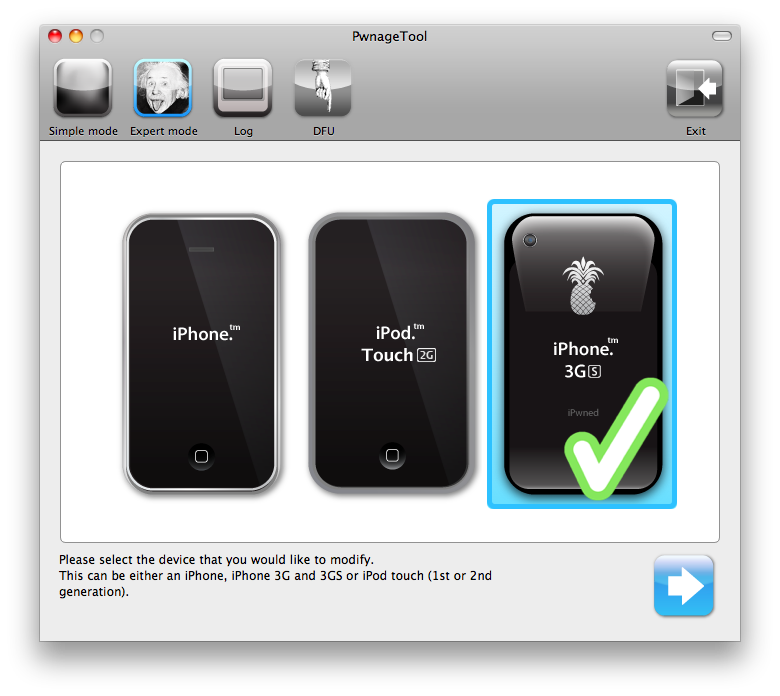

Click to select your iPhone. A check-mark will appear over the image of the phone.

Step Five

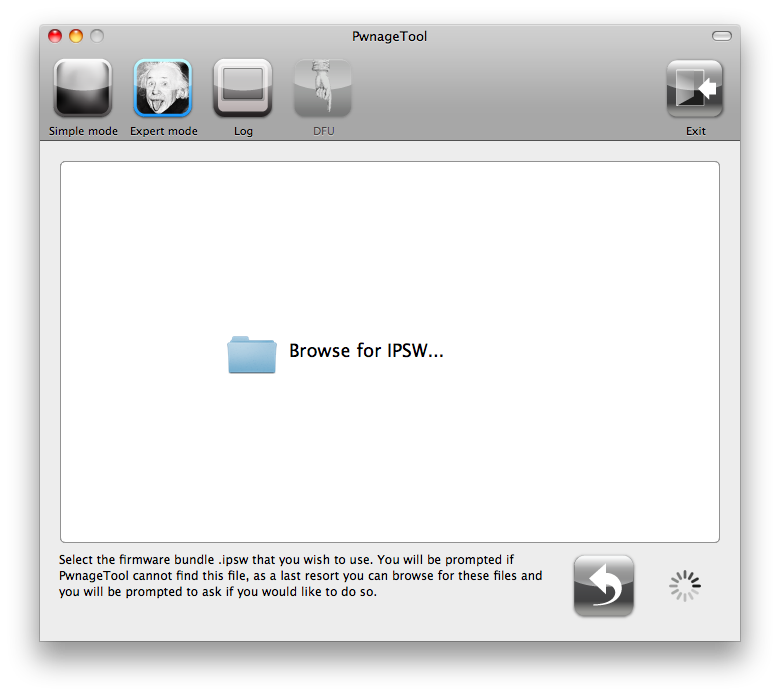

Click the blue arrow button to continue. You will be brought to the “Browse for IPSW” page. On my laptop, it automatically found the IPSW. If PwnageTool doesn’t automatically find the ipsw file you can click Browse for IPSW….

Click to select the found IPSW file, a checkmark will appear next to it. Then click the blue arrow button to continue.

Step Six

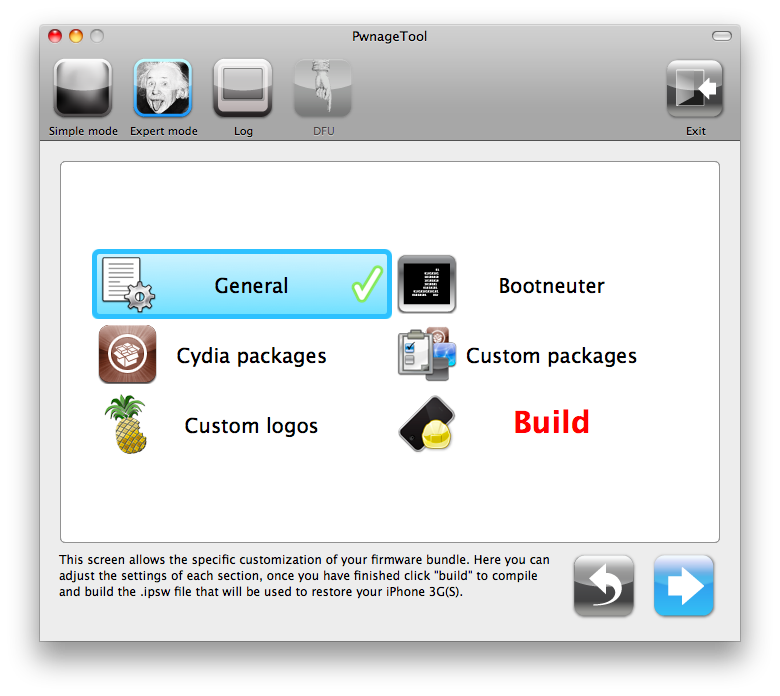

You will then be brought to a menu with 7 choices. Click to select General then click the blue arrow button.

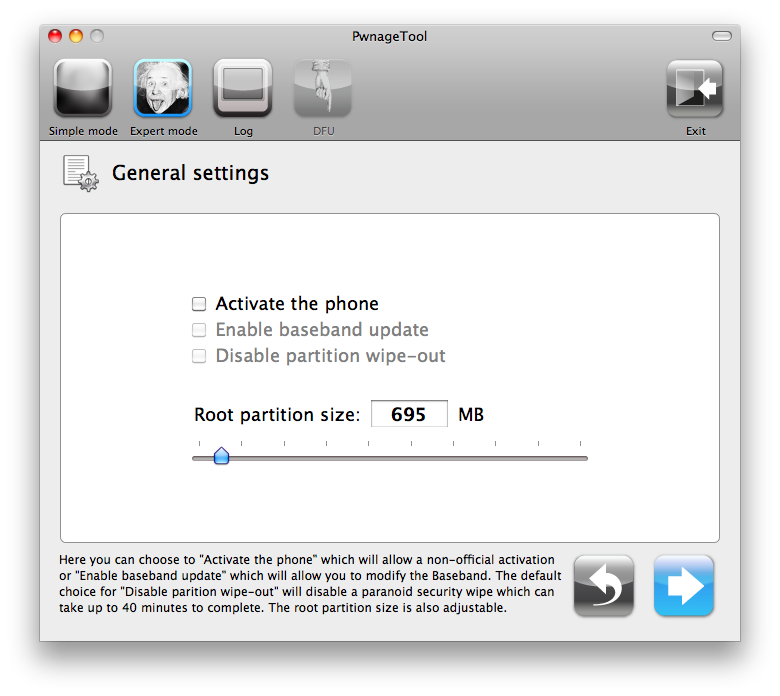

The General settings allows you to decide the partition size. Check Activate the phone if you are not with an official carrier then click the blue arrow button.

NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.

NOTE*: You may need to increase the size of the root partition slightly. My first attempt failed at creating the IPSW until I increased the size to about 695 MB.

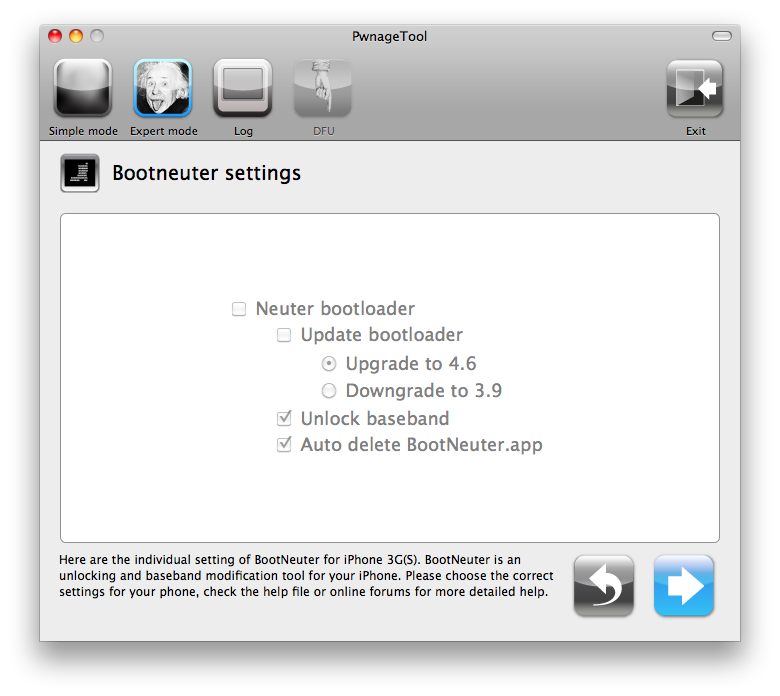

The Bootneuter settings are greyed out for the 3G iPhone. Click the blue arrow button.

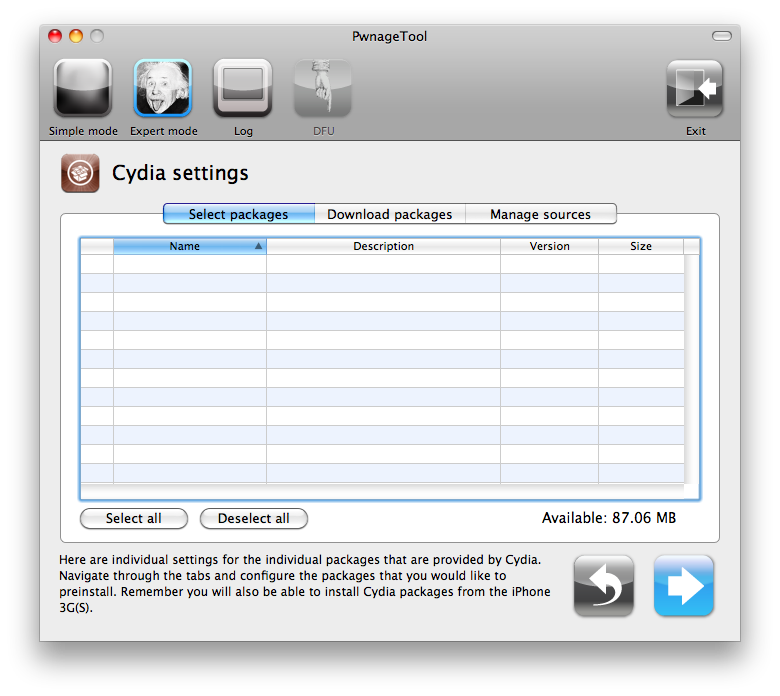

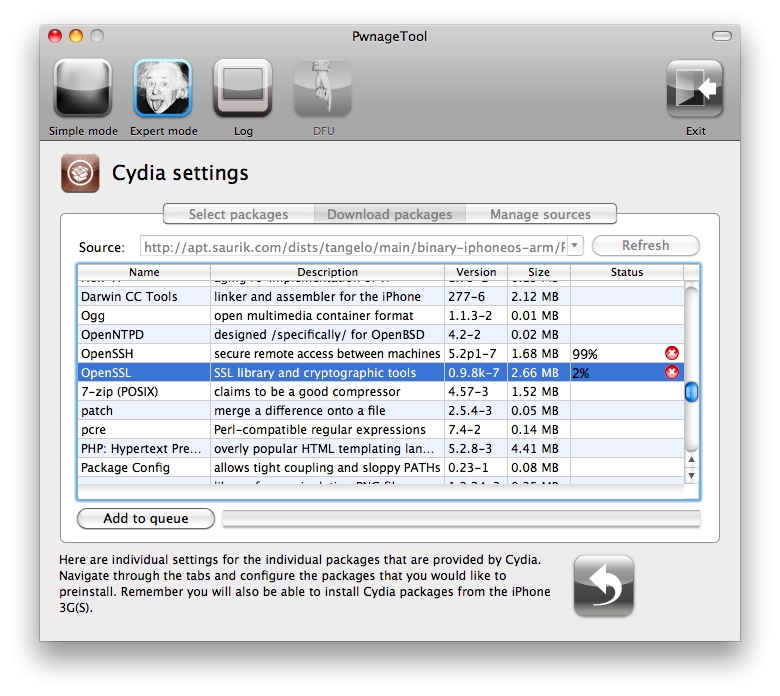

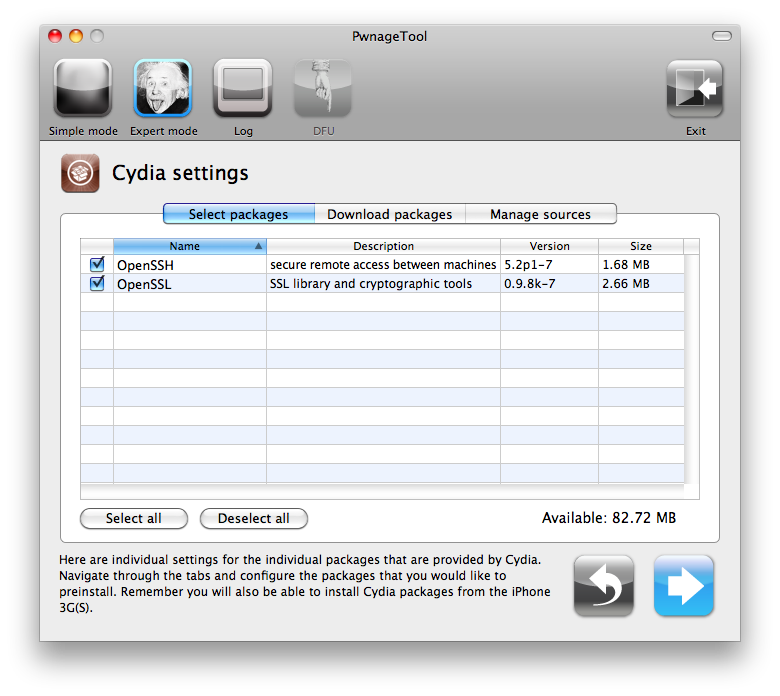

The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.

Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab.

Checkmark the ones you want then Click the blue arrow button.

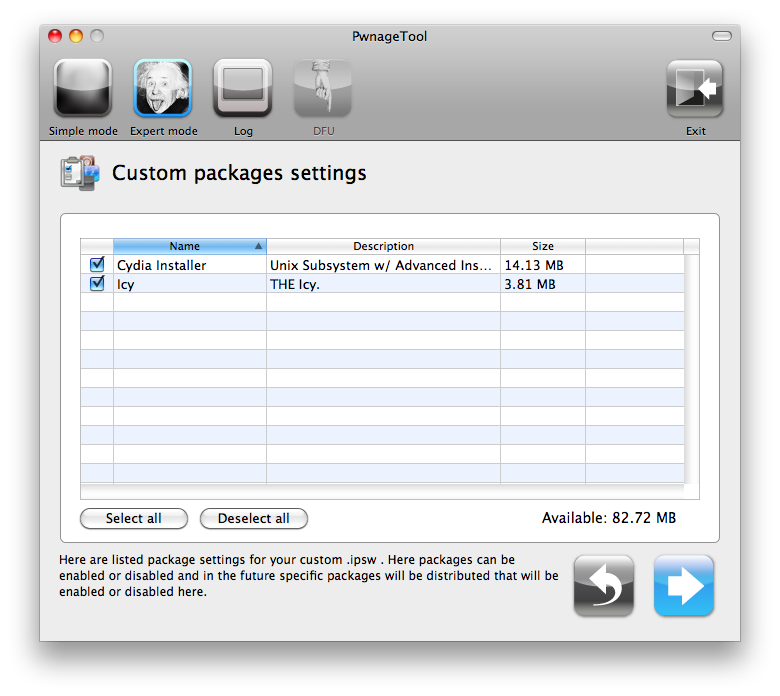

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.

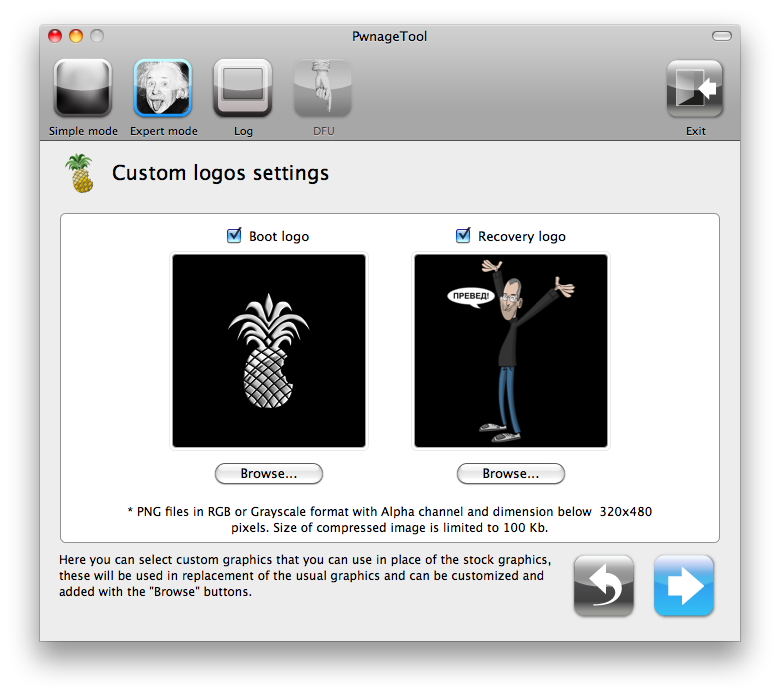

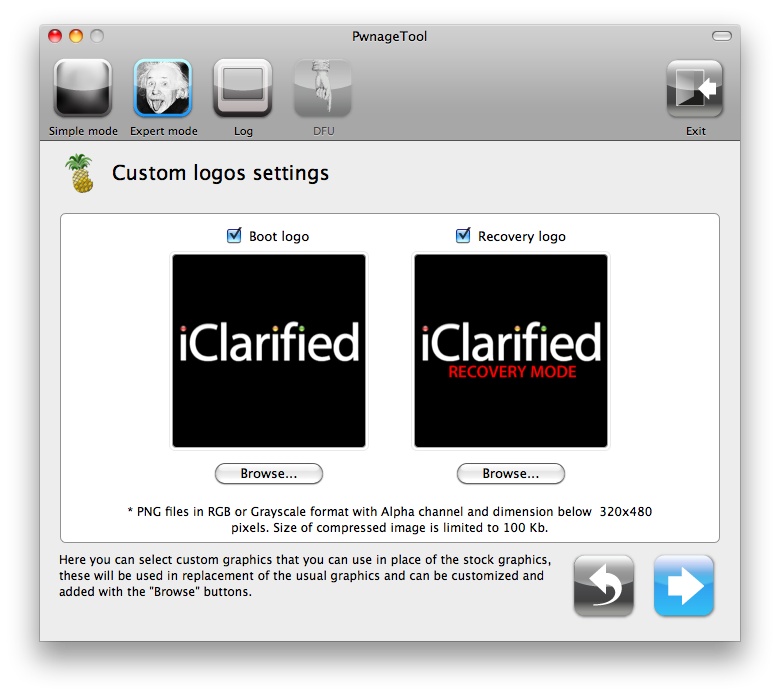

The Custom Logos Settings menu allows you to add your own images as boot logos. Click the Browse button to select your Boot logo and Recovery logo. If you would like to use the iClarified ones they can be found here:Boot Logo, Recovery Logo

Remember the rules for them: RGB or Grayscale format with Alpha channel and dimensions below 320×480…

Click the blue arrow button to continue.

Step Seven

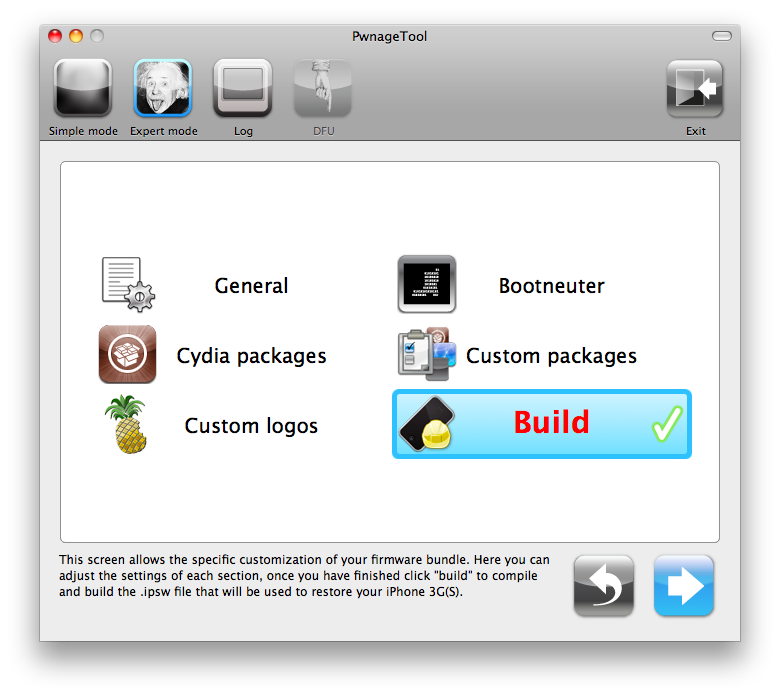

You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.

Step Eight

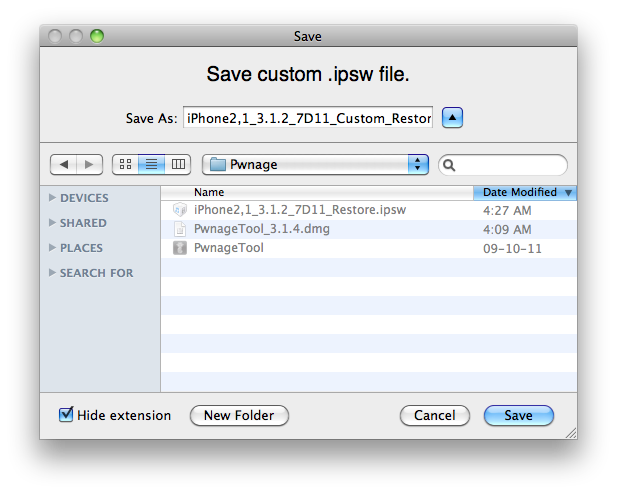

You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.

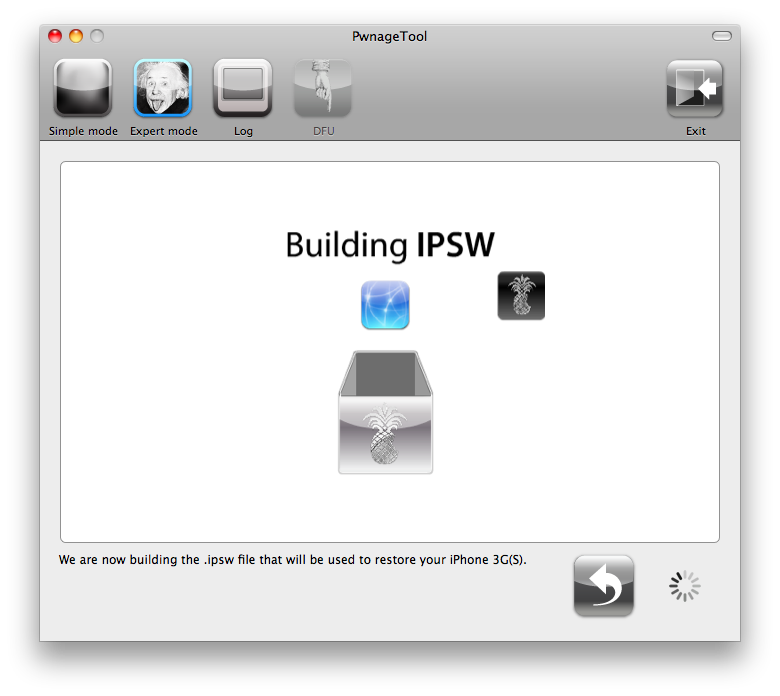

Your IPSW is now being built. Please allow up to 10 minutes.

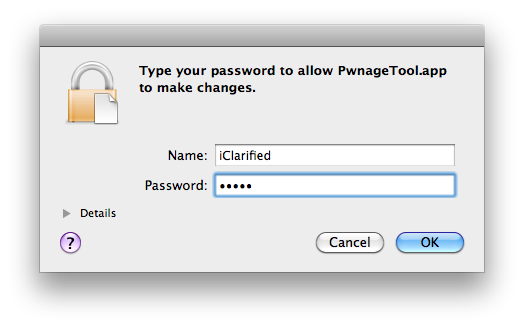

You will be asked to enter your administrator password. Do this then click the OK button.

You will be asked if your iPhone has been pwned before. If unsure click the NO button.

Step Nine

If your iPhone isn’t already connected to the computer connect it now.

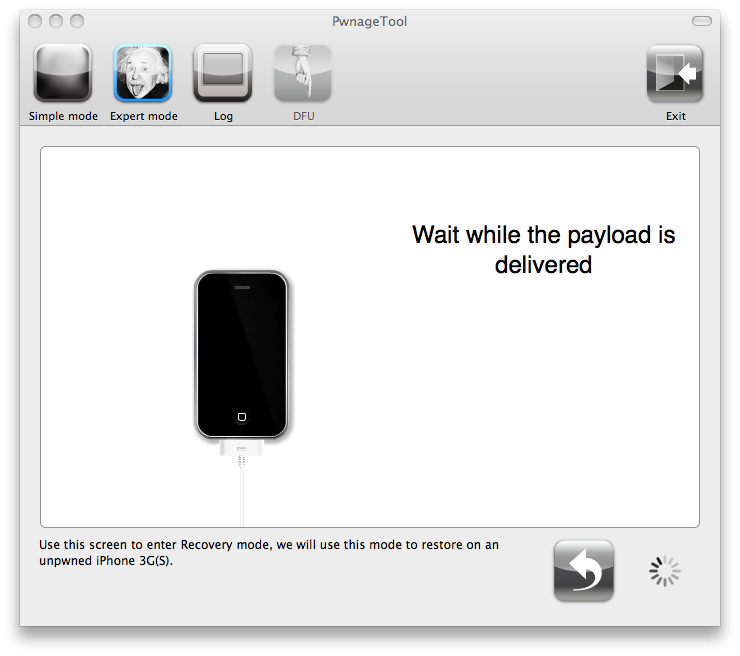

After delivering the payload PwnageTool will have placed your iPhone in recovery mode. Click OK to close the popup message telling you this.

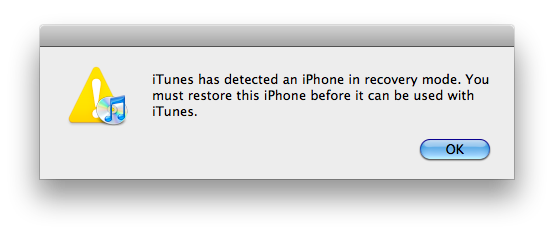

iTunes will also pop-up saying it has detected an iPhone in recovery mode.

Step Ten

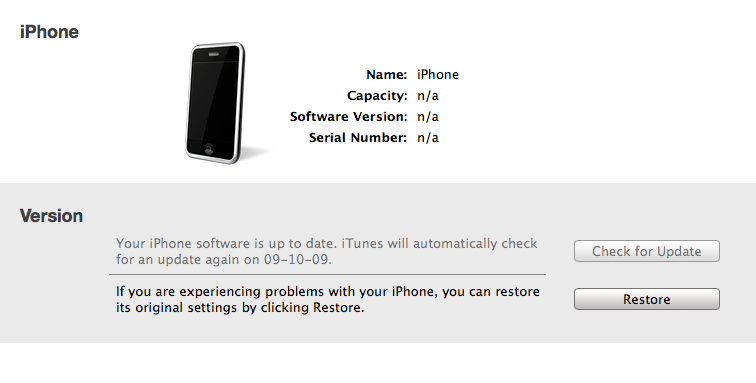

In iTunes, hold the Alt/Option key and click Restore.

Step Eleven

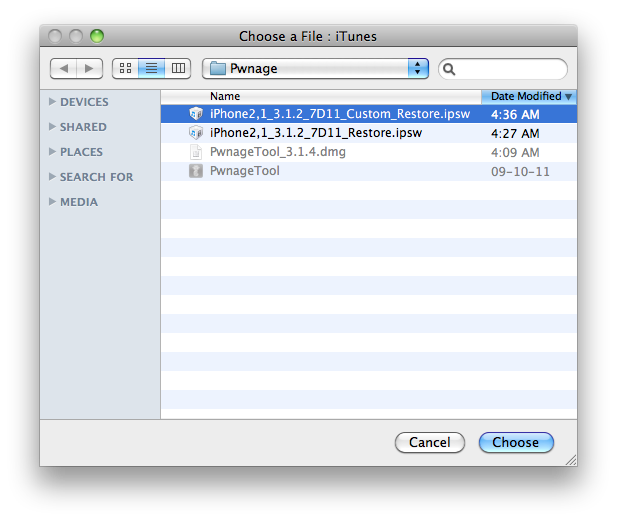

Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created (iPhone2,1_3.1.2_7D11_Custom_Restore.ipsw) and click the Open button.

Step Twelve

iTunes will now restore the firmware on your iPhone. This can also take up to 10 minutes. Once done you will be rebooted into jailbroken iPhone OS 3.1.2!

***THANKS: Thank you to the Dev-Team for their hard work in making this jailbreak and tutorial possible!
